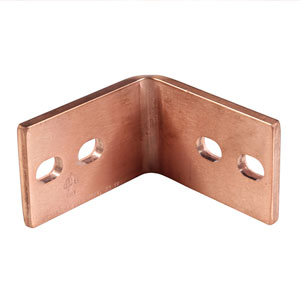

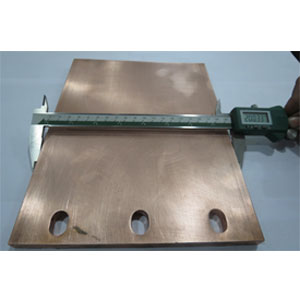

We Excel in Manufacturing Oxygen free Copper Bus bars & Strips for our esteemed Customers. Our Cutting edge technology & manufacturing unit enables us to produce copper Bus bars & Strips that maintain high conductivity copper products. The Copper Bus bars & Strips are provided in diverse shapes and sizes to meet the persistent requirements of the client
Technical Parameters
- Specification : As per IS, ASTM
- Material Grade : OFHC Copper, ETP Copper
- Width : 4 mm to 250 mm
- Thickness : 1 mm to 40mm
- Conductivity: As per Standard
- Product Section Area: 10 mm to 5000 mm
- Cross Section Area: 10 to 5000 Sq mm
| Condition | Hardness HV |
|---|---|
| Hard | Above 90 |
| Half Hard | 70-90 |
| Annealed | Below 65 |
Standards
Copper Bus Bars & Strips are produced to meet International Standards such as ASTM, BS, JTSH as required by the customers. Copper Bus Bars & Strips for electricals purpose.
Packing
- In wooden Boxes
- In Hessian cloth with plastic wrapped.
Application
- Electrical Engineering
- Transmission
- Switchgears
- Panels (HT & LT)
- Electrification lines
- Components
- Earthing
Shapes
Rectangle
Round Edge
Full Round
